Dwdm Wavelengths Chart - 40 Channel Dwdm Wavelength Chart Dwdm Dense Wavelength Division Multiplexing : Dense wavelength division multiplexing (dwdm) is an optical multiplexing technology used to increase bandwidth over existing fiber networks.
Get link
Facebook
Twitter
Pinterest
Email
Other Apps
Dwdm Wavelengths Chart - 40 Channel Dwdm Wavelength Chart Dwdm Dense Wavelength Division Multiplexing : Dense wavelength division multiplexing (dwdm) is an optical multiplexing technology used to increase bandwidth over existing fiber networks.. +49 (0)40 65729818 fax +49 (0)40 65729819 sales@ghipsystems.com Dwdm mux/demux filters multiple wavelengths (all within the 1550 nm band) created by multiple transmitters and operating on different fibers are combined onto one fiber by way of an optical filter (mux filter). Not sure why wavelength is used instead of frequency. Itu g.694.1 standard dwdm region is from 1528.77nm to 1563.86nm that resides mostly within the c band. The lower the insertion loss is, the less network deployment cost is needed.
Next consecutive channels are used, depending on wavelengths filtered. Dense wave division multiplexing (dwdm) itu grid: The technology creates multiple virtual fibers, thus multiplying the capacity of the. See the bti7800 series cli reference guide for more information. Leading dwdm solutions for optical transport network over dark fiber.

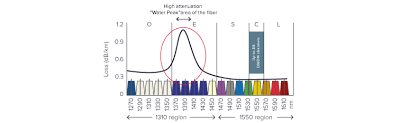

Introduction To Dwdm Optcore Net from www.optcore.net The dwdm channel spacing is 0.8/0.4 nm (100 ghz/50 ghz grid). Wavelength spacing cwdm provides 8 channels with 8 wavelengths (from 1470nm through 1610nm) with a channel spacing of 20nm. And mux is a passive device that cannot strengthen the light signals. Cwdm (coarse wavelength division multiplexing) up to 18 wavelength channels (also referred to as lambdas or colours), can be transported over a dark fi ber network. Therefore, there is a big insertion loss of dwdm mux. The frequency grid, anchored to 193.1 thz, supports a variety of channel spacings ranging from 12.5 ghz to 100 ghz and wider. This small channel spacing allows to transmit simultaneously more information. For dwdm, we also provide tunable dwdm transceiver.additionally to the vendor compatibility, you can also tune the channel/wavelength within seconds.

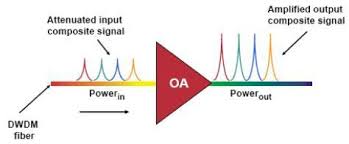

And mux is a passive device that cannot strengthen the light signals.

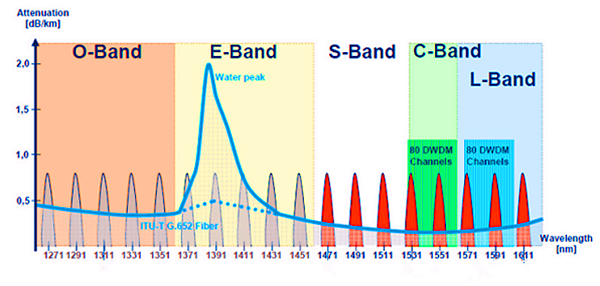

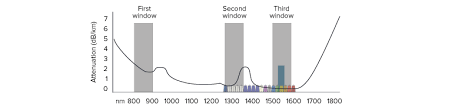

Currently a restriction on wavelengths between 1530 nm and 1625 nm exists which corresponds to the c and l band. Obviously there is a simple conversion from one to the other. With wider channel spacing, cwdm channel numbers available on the same link are significantly reduced. Cwdm has wider channel spacing, typically 20 nm. Overview this tutorial addresses the importance of scalable dwdm systems in enabling While dwdm can accommodate 40, 80 or even 160 wavelengths with narrower wavelength spans which are as small as 0.8nm, 0.4nm or even 0.2nm (see figure 2). +49 (0)40 65729818 fax +49 (0)40 65729819 sales@ghipsystems.com Wavelength spacing cwdm provides 8 channels with 8 wavelengths (from 1470nm through 1610nm) with a channel spacing of 20nm. Refer to itu grid chart. Dense wavelength division multiplexing (dwdm) is an optical multiplexing technology used to increase bandwidth over existing fiber networks. Dense wave division multiplexing (dwdm) itu grid: If you have any questions please contact us at. The complete channel grid for 100ghz dwdm is shown below.
The dwdm channel spacing is 0.8/0.4 nm (100 ghz/50 ghz grid). Cwdm has wider channel spacing, typically 20 nm. Cwdm lasers are spaced 20nm apart while dwdm lasers are spaced 0.8nm apart. Dense wave division multiplexing (dwdm) itu grid: This small channel spacing allows to transmit simultaneously more information.
Dwdm Wdm Cwdm Multiplexing Vialite Communications from www.vialite.com Not sure why wavelength is used instead of frequency. Dwdm has a much narrower wavelength spacing, typically 0.8 nm. Dwdm works by combining and transmitting multiple signals simultaneously at different wavelengths on the same fiber. Cwdm has wider channel spacing, typically 20 nm. Dense wavelength division multiplexing (dwdm) itu grid. The cwdm itu channel spacing is 100 ghz (0.8nm) for 40 channels. Dwdm systems primarily use c and/or l band ranges which start around 1500 nm and go higher. The dwdm channel spacing is 0.8/0.4 nm (100 ghz/50 ghz grid).
24/7 support with our experienced technical team, multilingual.
The system might also include the ability to accept direct optical signals to the multiplexer; Currently a restriction on wavelengths between 1530 nm and 1625 nm exists which corresponds to the c and l band. If you have any questions please contact us at. You can use our universal transceiver in devices from nearly 200 vendors. Ghip systems gmbh wandsbeker koenigstrasse 50 22041 hamburg, germany tel. Dwdm wavelength plan (50ghz spacing) frequency (thz). Leading dwdm solutions for optical transport network over dark fiber. Dense wavelength division multiplexing dense wavelength division multiplexing or dwdm is a technology which multiplexes or demultiplexes a number of optical carrier signals onto a single optical fiber by using different wavelengths (i.e. Dwdm mux/demux filters multiple wavelengths (all within the 1550 nm band) created by multiple transmitters and operating on different fibers are combined onto one fiber by way of an optical filter (mux filter). Not sure why wavelength is used instead of frequency. Itu g.694.1 standard dwdm region is from 1528.77nm to 1563.86nm that resides mostly within the c band. Up to 8 channels can be transported over a single dark fi ber strand. +49 (0)40 65729818 fax +49 (0)40 65729819 sales@ghipsystems.com
+49 (0)40 65729818 fax +49 (0)40 65729819 sales@ghipsystems.com Dwdm muxs are the components that combine several different wavelengths so that they can be transferred on one fiber. The lower the insertion loss is, the less network deployment cost is needed. The frequency grid, anchored to 193.1 thz, supports a variety of channel spacings ranging from 12.5 ghz to 100 ghz and wider. Dwdm wavelength plan (50ghz spacing) frequency (thz).
Capacity Expansion And Flexibility Dwdm Network Fiber Optic Cabling Solutions from www.cables-solutions.com See the bti7800 series cli reference guide for more information. (510) 490 9930 | fax: Multiplexing reduces the cost per bit sent and received over the network. Cwdm (coarse wavelength division multiplexing) up to 18 wavelength channels (also referred to as lambdas or colours), can be transported over a dark fi ber network. Obviously there is a simple conversion from one to the other. +49 (0)40 65729818 fax +49 (0)40 65729819 sales@ghipsystems.com Dwdm systems primarily use c and/or l band ranges which start around 1500 nm and go higher. And mux is a passive device that cannot strengthen the light signals.
Dense wavelength division multiplexing (dwdm) is an optical multiplexing technology used to increase bandwidth over existing fiber networks.
Dense wave division multiplexing (dwdm) itu grid: Obviously there is a simple conversion from one to the other. 24/7 support with our experienced technical team, multilingual. And mux is a passive device that cannot strengthen the light signals. The technology creates multiple virtual fibers, thus multiplying the capacity of the. C)select lowest dwdm/cwdm itu grid channel. The cwdm itu channel spacing is 100 ghz (0.8nm) for 40 channels. Key issues 1.1 tbits/sec total bit rate (more than 13 million telephone channels) 55 wavelengths at 20 gbits/sec each 1550 nm operation over 150 km with dispersion compensation bandwidth from 1531.7 nm to 1564.07 nm (0.6 nm spacing) terabit transmission using dwdm Not sure why wavelength is used instead of frequency. Tired of searching the right transceiver for your system? Dwdm channels are evenly spaced in range from 1260 nm to 1675 nm and categorized in bands and defined by: Wavelength spacing cwdm provides 8 channels with 8 wavelengths (from 1470nm through 1610nm) with a channel spacing of 20nm. Cwdm & dwdm wavelength guide 2.
